Design of a rectangular linear microstrip patch antenna array for 5G communication

Design of a rectangular linear microstrip patch antenna array for 5G communication

Saeed, Muhammad Asfar and Nwajana, Augustine O. ORCID logoORCID: https://orcid.org/0000-0001-6591-5269 (2025) Design of a rectangular linear microstrip patch antenna array for 5G communication. In: 2024 IEEE International Symposium on Phased Array Systems and Technology (ARRAY), 15th - 18th October 2024, Boston, MA, USA. IEEE Xplore . Institute of Electrical and Electronics Engineers (IEEE), Piscataway, New Jersey, pp. 1-4. ISBN 979-8350392159; 979-8350392142 (doi:10.1109/ARRAY58370.2024.10880409)

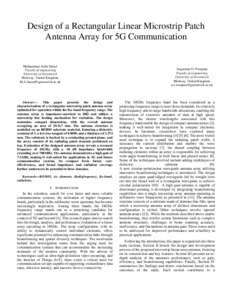

[thumbnail of Author's Accepted Manuscript]
Preview
PDF (Author's Accepted Manuscript)
49833 NWAJANA_Design_Of_A_Rectangular_Linear_Microstrip_Patch_Antenna_Array_For_5G_Communication_(AAM)_2025.pdf - Accepted Version

Download (304kB) | Preview

Abstract

This paper presents the design and characterization of a rectangular microstrip patch antenna array optimized for operation within the Ku-band frequency range. The antenna array is impedance-matched to 50Ω and utilizes a microstrip line feeding mechanism for excitation. The design maintains compact dimensions, with the overall antenna occupying an area of 29.5x7 mm. The antenna structure is modelled on an R03003 substrate material, featuring a dielectric constant of 3, a low-loss tangent of 0.0009, and a thickness of 1.574 mm. The substrate is backed by a conducting ground plane, and the array consists of six radiating patch elements positioned on top. Evaluation of the designed antenna array reveals a resonant frequency of 18GHz, with a −10 dB impedance bandwidth extending over 700MHz. The antenna demonstrates a high gain of 7.51dBi, making it well-suited for applications in 5G and future communication systems. Its compact form factor, cost-effectiveness, and broad impedance and radiation coverage further underscore its potential in these domains.

Item Type: Conference Proceedings
Title of Proceedings: 2024 IEEE International Symposium on Phased Array Systems and Technology (ARRAY), 15th - 18th October 2024, Boston, MA, USA
Uncontrolled Keywords: six elements, radiofrequency, Ku-band, radiations, phased arrays, microstrip antenna arrays, array signal processing, patch antennas, microstrip antennas, microstrip, impedance, linear antenna arrays, substrates, gain, RO3003, six elements, radiofrequency, ku-band, radiations
Subjects: Q Science > QA Mathematics > QA75 Electronic computers. Computer science
T Technology > T Technology (General)
T Technology > TK Electrical engineering. Electronics Nuclear engineering
Faculty / School / Research Centre / Research Group: Faculty of Engineering & Science
Faculty of Engineering & Science > School of Engineering (ENG)
