A low input current ripple high step-up DC-DC converter with reduced voltage stress for renewable energy application

A low input current ripple high step-up DC-DC converter with reduced voltage stress for renewable energy application

Yousefi, Nasser, Mirabbasi, Davar, Alfi, Behrouz, Salimi, Mahdi ORCID: 0000-0003-3007-3027 and Aghajani, Gholamreza (2024) A low input current ripple high step-up DC-DC converter with reduced voltage stress for renewable energy application. Journal of Operation and Automation in Power Engineering. pp. 223-230. ISSN 2322-4576 (Print), 2423-4567 (Online) (doi:https://doi.org/10.22098/joape.2024.13319.2016)

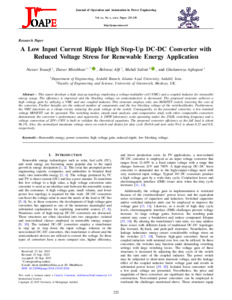

[img]
Preview
PDF (Open Access article)
48465 SALIMI_A_Low_Input_Current_Ripple_High_Step-Up_DC-DC_Converter_With_Reduced_Voltage_Stress_For_Renewable_Energy_Application_(OA)_2024.pdf - Published Version
Available under License Creative Commons Attribution Non-commercial.

Download (2MB) | Preview

Abstract

This report develops a high step-up topology employing a voltage multiplier cell (VMC) and a coupled inductor for renewable energy usage. The efficiency is improved and the blocking voltage on semiconductors is decreased. The proposed structure achieves a high voltage gain by utilizing a VMC and one coupled inductor. This structure employs only one MOSFET switch, lowering the cost of the converter. Further benefits are the reduced number of components and the low blocking voltage of the switches/diodes. Furthermore, the VMC functions as a clamp circuit, reducing the peak voltage of the switch. Consequently, in the presented converter, a low nominal voltage MOSFET can be operated. The switching modes, steady-state analysis, and comparative study with other comparable converters demonstrate the converter's performance and superiority. A 200W laboratory scale operating under the 25kHz switching frequency and a voltage conversion of 20V~150V is built to validate the theoretical equations. The proposed converter efficiency at the full load is about 96.3%. Also, the normalized maximum voltage stress on switch and diodes for duty cycle D=0.6 and turn ratio N=2 is about 0.33 and 0.8, respectively.

Item Type: Article
Uncontrolled Keywords: renewable energy, power converter, high voltage gain, reduced ripple, low blocking voltage
Subjects: T Technology > T Technology (General)
T Technology > TK Electrical engineering. Electronics Nuclear engineering
Faculty / School / Research Centre / Research Group: Faculty of Engineering & Science
Faculty of Engineering & Science > School of Engineering (ENG)
Last Modified: 05 Nov 2024 16:37
URI: http://gala.gre.ac.uk/id/eprint/48465
