Reduced-order modelling for coupled thermal-mechanical analysis and reliability assessment of power electronic modules with nonlinear material behaviours

Reduced-order modelling for coupled thermal-mechanical analysis and reliability assessment of power electronic modules with nonlinear material behaviours

Hassan, Sheikh ORCID: 0000-0002-6215-7340 , Stoyanov, Stoyan ORCID: 0000-0001-6091-1226 , Rajaguru, Pushparajah ORCID: 0000-0002-6041-0517 and Bailey, Christopher ORCID: 0000-0002-9438-3879 (2024) Reduced-order modelling for coupled thermal-mechanical analysis and reliability assessment of power electronic modules with nonlinear material behaviours. In: 2024 IEEE 10th Electronics System-Integration Technology Conference (ESTC). Electronics System-Integration Technology Conference, ESTC . Institute of Electrical and Electronics Engineers (IEEE), Berlin, Germany; Piscataway, New Jersey, pp. 1-8. ISBN 979-8350390360 ISSN 2687-9700 (Print), 2687-9727 (Online) (doi:https://doi.org/10.1109/ESTC60143.2024.10712079)

[img]
Preview
PDF (Accepted conference paper)

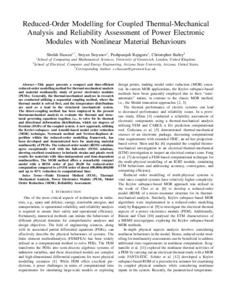

48354 HASSAN_Reduced-Order_Modelling_for_Coupled_Thermal-Mechanical_Analysis_And_Reliability_Assessment_Of_Power_Electronic_Modules_With_Nonlinear_Material_Behaviours_(AAM)_2024.pdf - Accepted Version
Available under License Creative Commons Attribution.

Download (4MB) | Preview

Abstract

This paper presents a compact and time-efficient reduced-order modelling method for thermal-mechanical analysis and material nonlinearity study of power electronics modules (PEMs). Generally, the thermal-mechanical analyses in research are conducted utilising a sequential coupling method, where the thermal model is solved first, and the temperature distributions are used as a load in the structural (mechanical) system. The direct-coupling method has been employed in the present thermomechanical analysis to evaluate the thermal and structural governing equations together, i.e., to solve for its thermal and directional deformation distributions, which are degrees of freedom (DOFs) of the coupled system. A new approach, utilising the Krylov-subspace- and Arnoldi-based model order reduction (MOR) technique, Newmark method and Newton-Raphson algorithm within the reduced-order modelling framework, has been developed and demonstrated here for analysing material nonlinearity of PEMs. The reduced-order model (ROM) solutions agree exceptionally well with the full-order (FOM) solutions, showing excellent consistency in inelastic strains and plastic work results for materials with time-independent and time-dependent nonlinearities. The MOR method offers a remarkably compact model with a ROM order of just 20x20 for reduced-order computation compared to a FOM order of about 400,000x400,000 and up to 83% reduction in computational time.

Item Type: Conference Proceedings
Title of Proceedings: 2024 IEEE 10th Electronics System-Integration Technology Conference (ESTC)
Uncontrolled Keywords: Finite Element Method (FEM), thermal-mechanical analysis, Power Electronics Module (PEM), Model Order Reduction (MOR), reliability assessment
Subjects: Q Science > QA Mathematics > QA75 Electronic computers. Computer science
T Technology > T Technology (General)
T Technology > TK Electrical engineering. Electronics Nuclear engineering
Faculty / School / Research Centre / Research Group: Faculty of Engineering & Science
Faculty of Engineering & Science > School of Computing & Mathematical Sciences (CMS)
Last Modified: 21 Oct 2024 11:36
URI: http://gala.gre.ac.uk/id/eprint/48354
